허베이 성 REKING 철망사 CO., 주식 회사
스테인리스, 폴리에스테 및 나일론 Material.Screen 인쇄 물자를 가진 스크린 인쇄 메시 & 여과기 메시
제품 상세 정보:
결제 및 배송 조건:
|
재료: | 스테인레스 강 직조 메쉬 | 타입: | 직물 철망사 |
---|---|---|---|
홀 형상: | 정연한 모양 | 신청: | 스크린 |
기술: | 우븐 | 특징: | 저항하는 산 |
상품 이름: | 네덜란드 금속 실 방직 그물 | ||
하이 라이트: | 바비큐 와이어 메쉬,장식적 금속 체눈 |

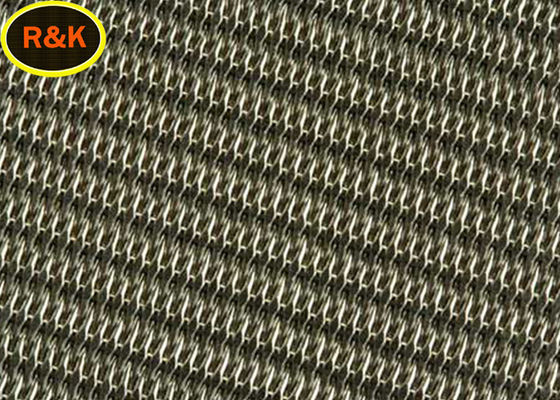

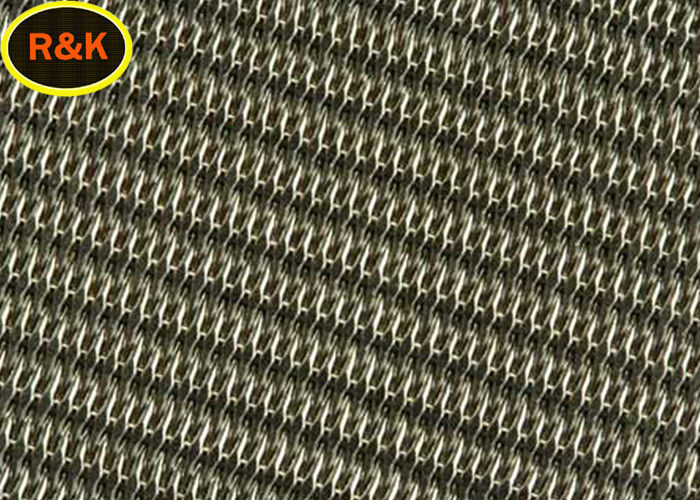

Stainless steel woven wire mesh screen for Plain Dutch and Twill Dutch
Description of stainless steel Dutch woven wire mesh
Dutch steel wire cloth is also called filter cloth or micro cloth.
Wire mesh of Dutch woven filter cloth: low carbon steel wire, brass wire, nickel wire, stainless steel wire, polyester fiber.
Typical weaving patterns: Dutch plain, Dutch twill, Dutch twill.
General use: Filtration and screening in airspace, petroleum and chemicals.
Parameters of stainless steel Dutch mesh
Plain weave Dutch mesh |
||||
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
Width:1m-1.6m |
